BMW M52TU / M54 / M56 Dual VANOS Camshaft Timing Tool Kit

Properly time your BMW engine and service the Dual VANOS system with this M52TU, M54, and M56 Camshaft Timing Tool Kit. This comprehensive kit includes the specialty tools needed to lock the crankshaft and camshafts, preload the timing chain, position the VANOS sprockets, and correctly set engine timing during reassembly.

These tools are especially useful when performing one of our Dual VANOS rebuild kits, replacing the VANOS unit, removing the camshafts, servicing the timing chain, or completing other cylinder head and engine repairs.

Rather than piecing together individual specialty tools, this kit provides the essential timing equipment in one convenient carrying case. The tool combination is designed for BMW M52TU, M54, and M56 six-cylinder engines.

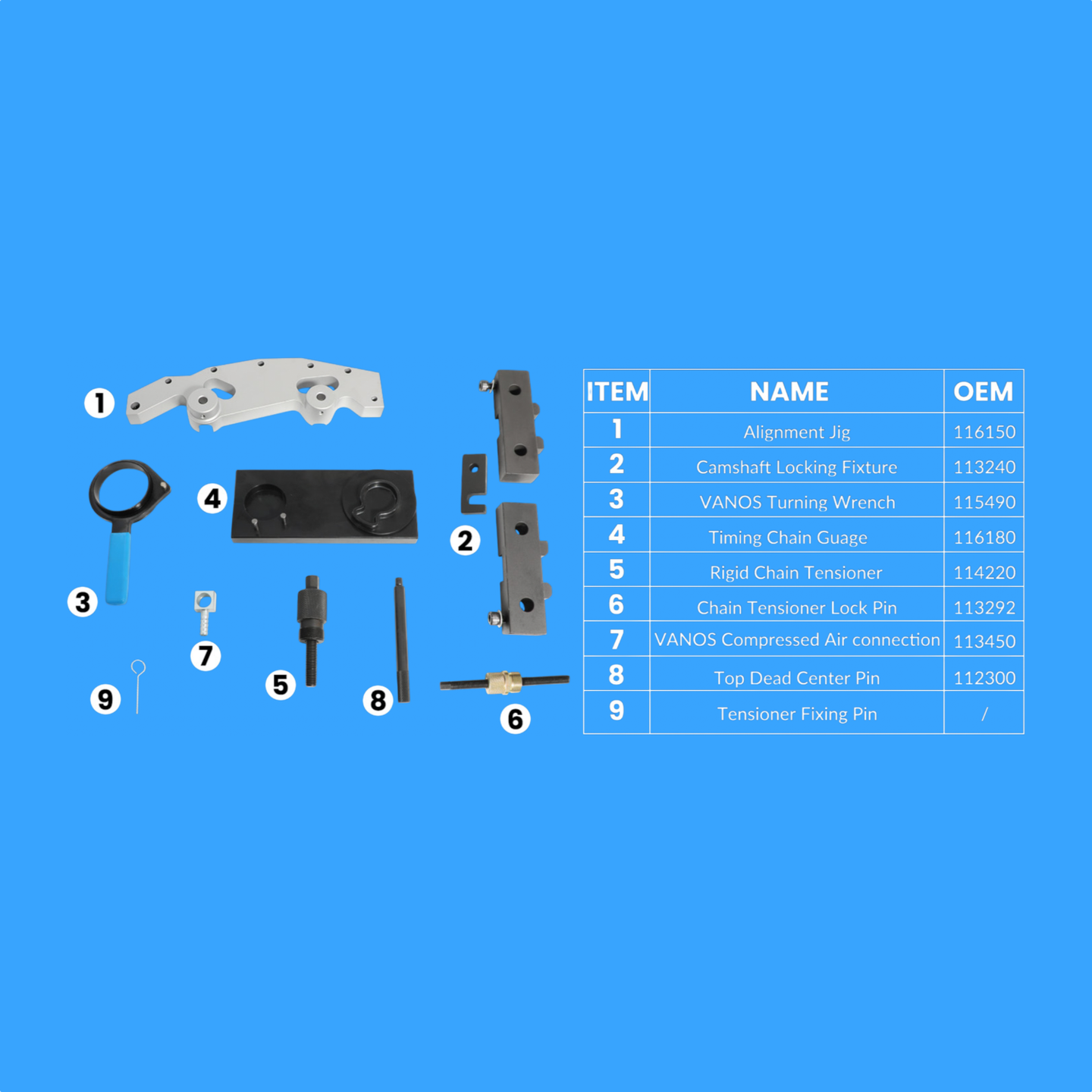

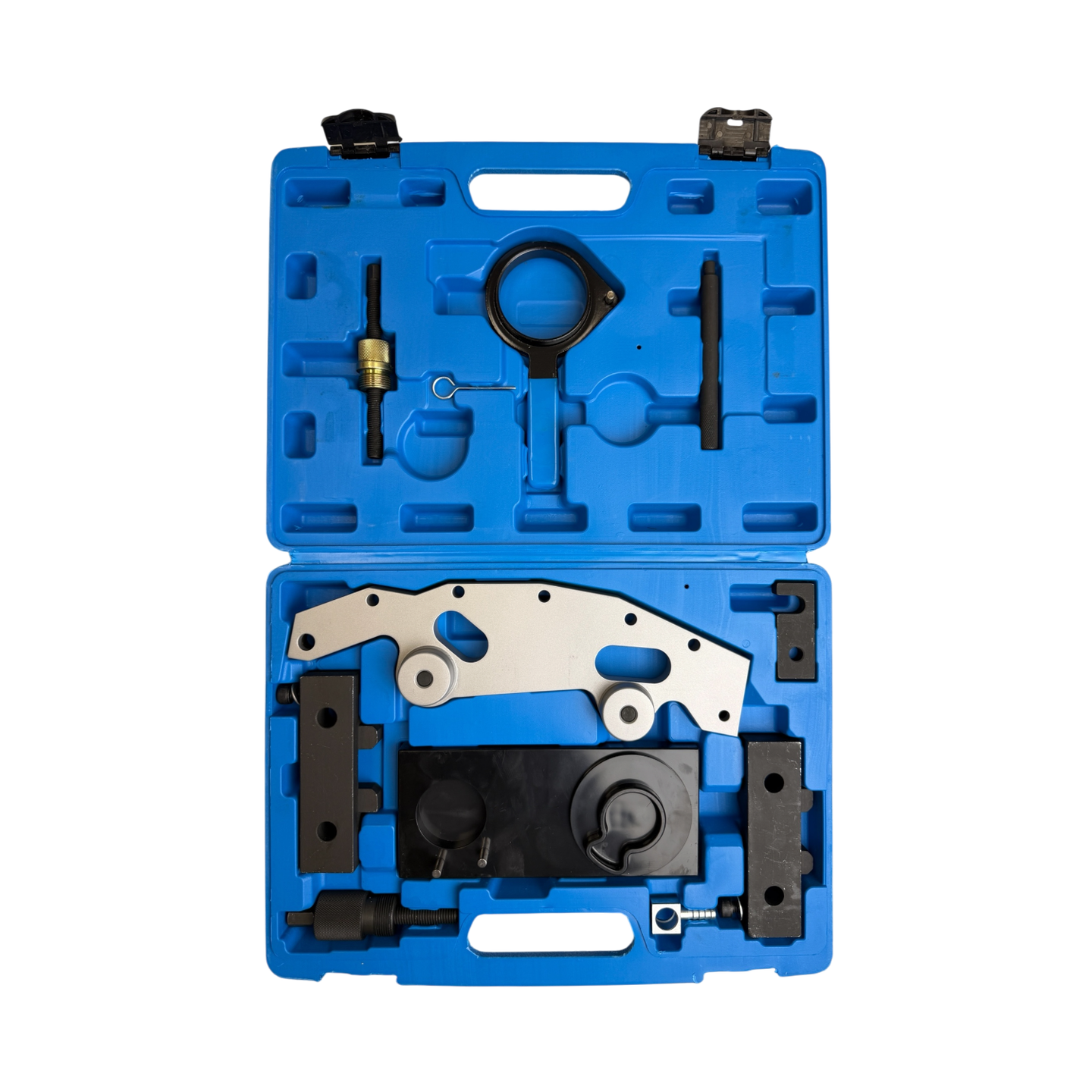

Kit Includes

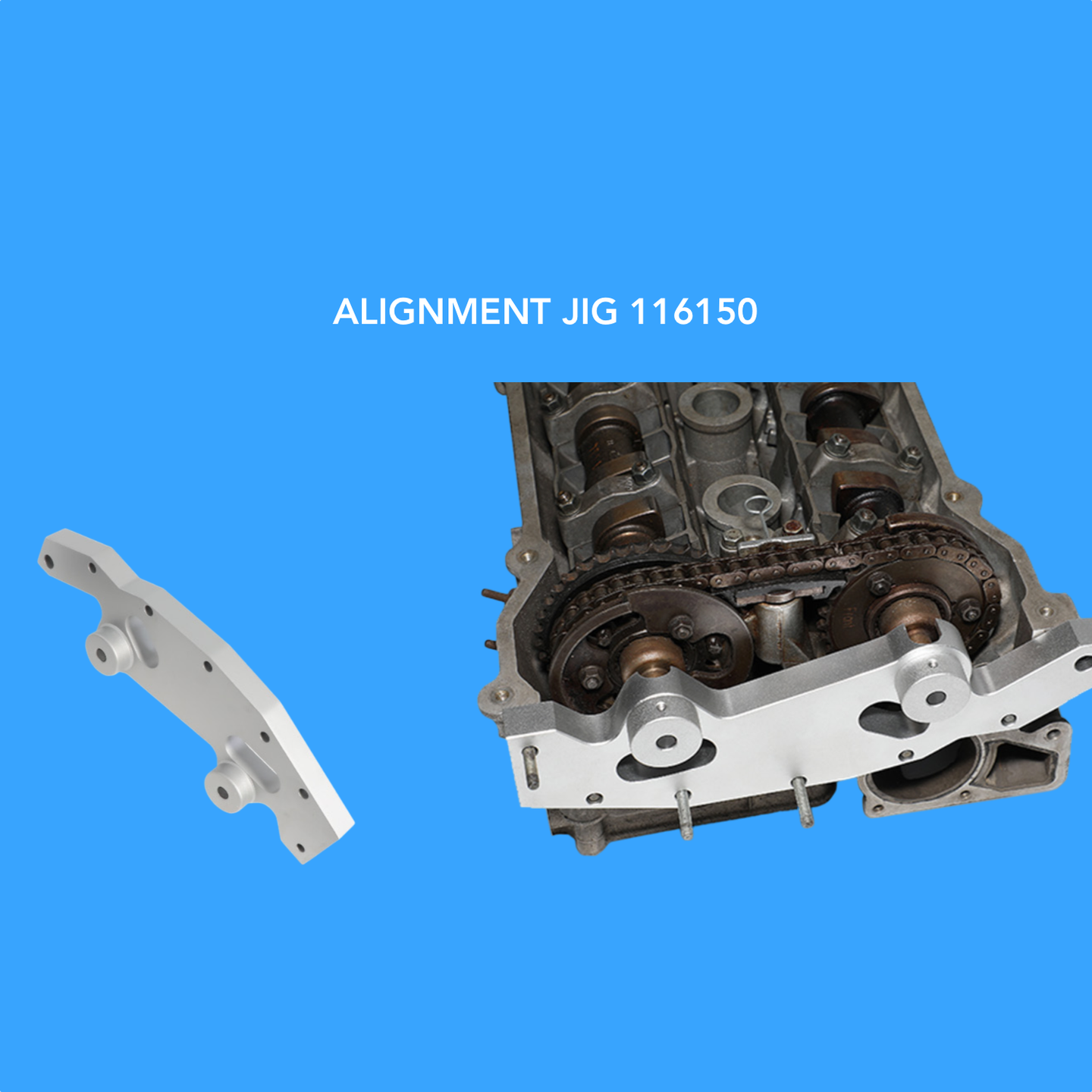

• 1x Alignment Jig

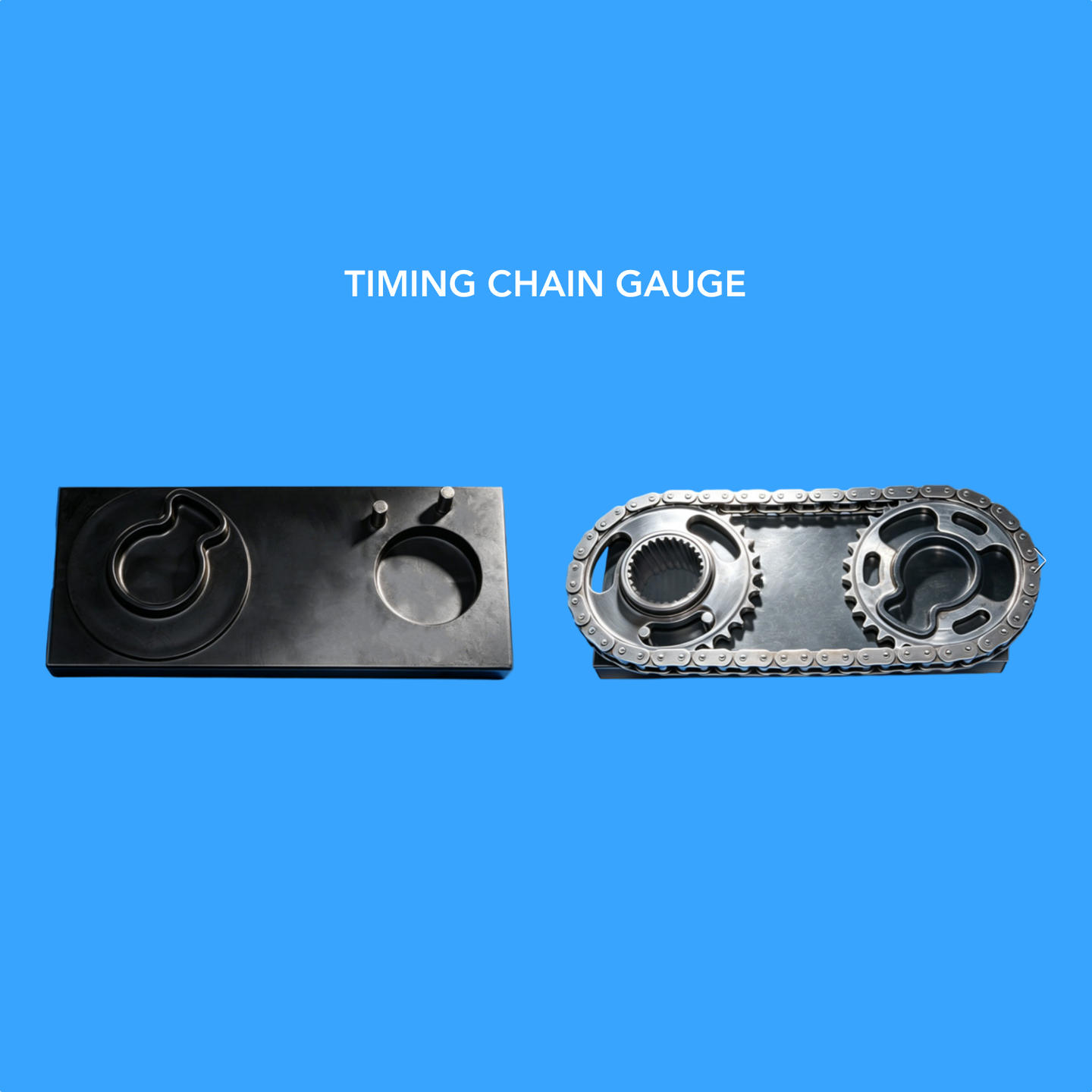

• 1x Sprocket Assembly Jig
• 1x Rigid Chain Tensioner

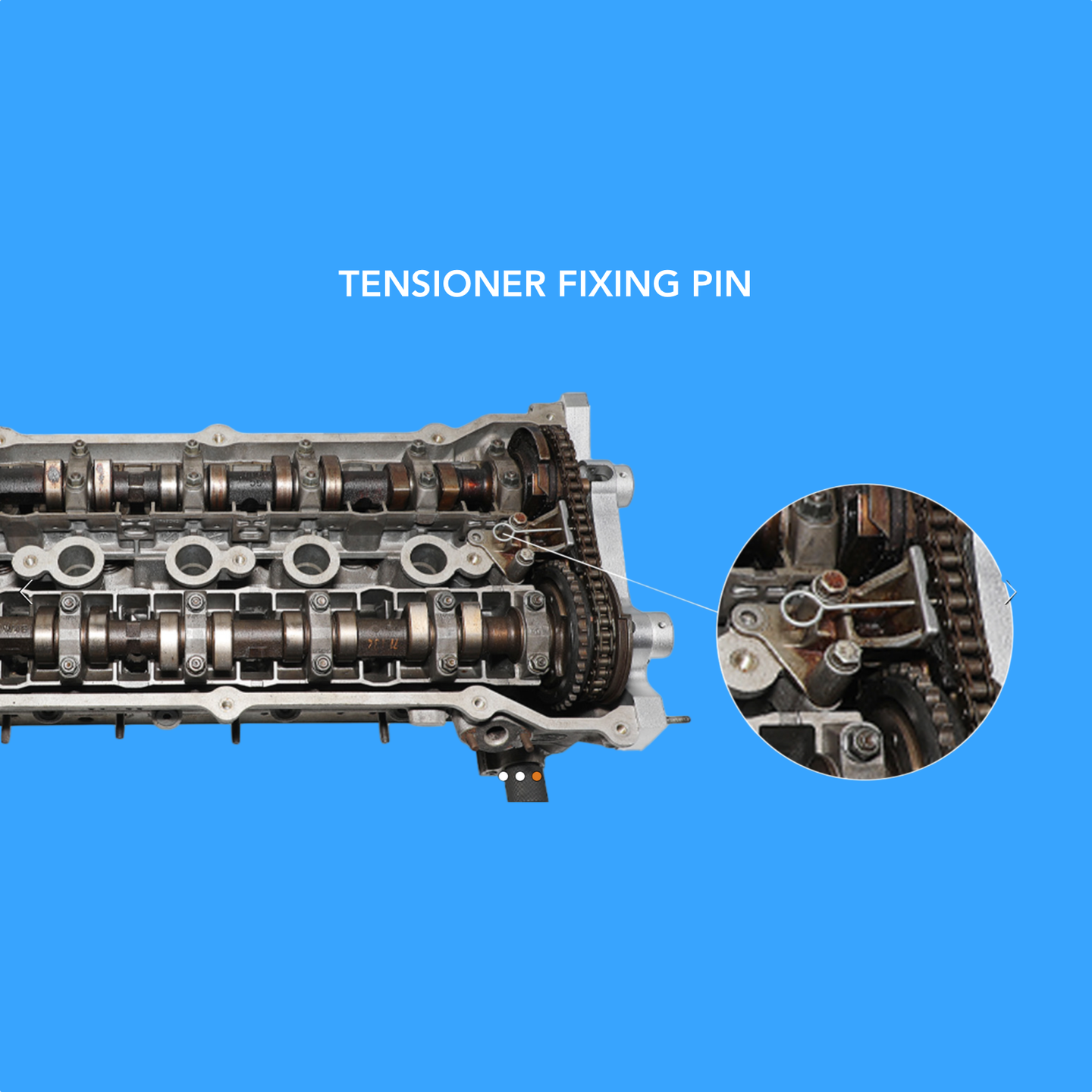

• 1x Chain Tensioner Lock Pin
• 1x VANOS Compressed Air Connection
• 1x Camshaft Locking Fixture
• 1x Top Dead Center Pin
• 1x VANOS Turning Wrench

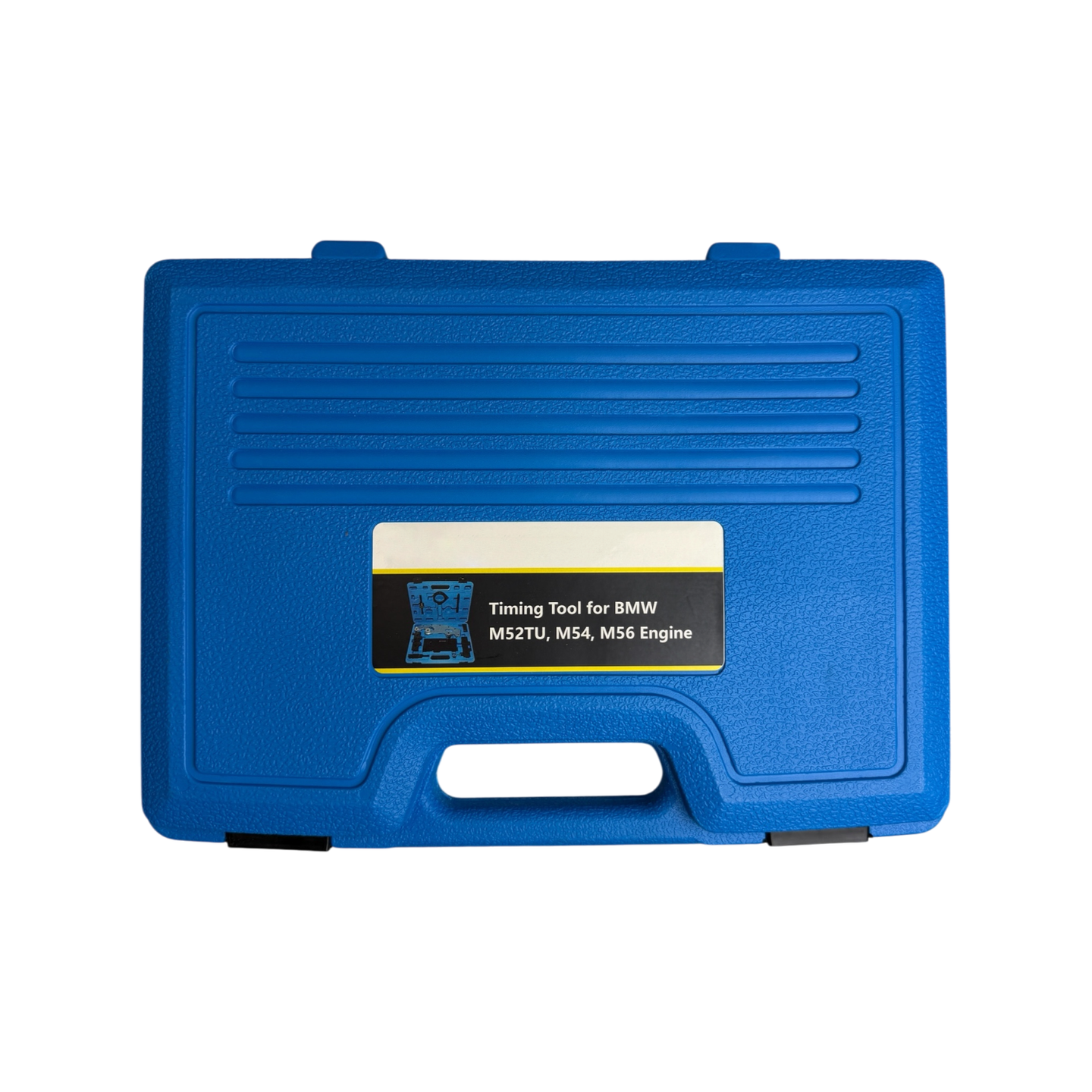

• 1x Storage / Carrying Suitcase

Perfect for Dual VANOS Rebuilds

Removing and reinstalling the Dual VANOS unit requires the engine's mechanical timing to be properly maintained. The camshafts and crankshaft must be correctly positioned, and the timing chain and sprocket assemblies need to be properly set during reassembly.

This kit provides the specialty tools needed to perform those procedures accurately and is an excellent companion to our M52TU / M54 Dual VANOS Rebuild Kits.

It's also useful for:

• Dual VANOS removal and installation
• Camshaft removal and installation
• Cylinder head repairs
• Timing chain service
• Timing guide replacement
• Engine rebuilding
• Head gasket replacement
• General engine timing work

Tool Functions

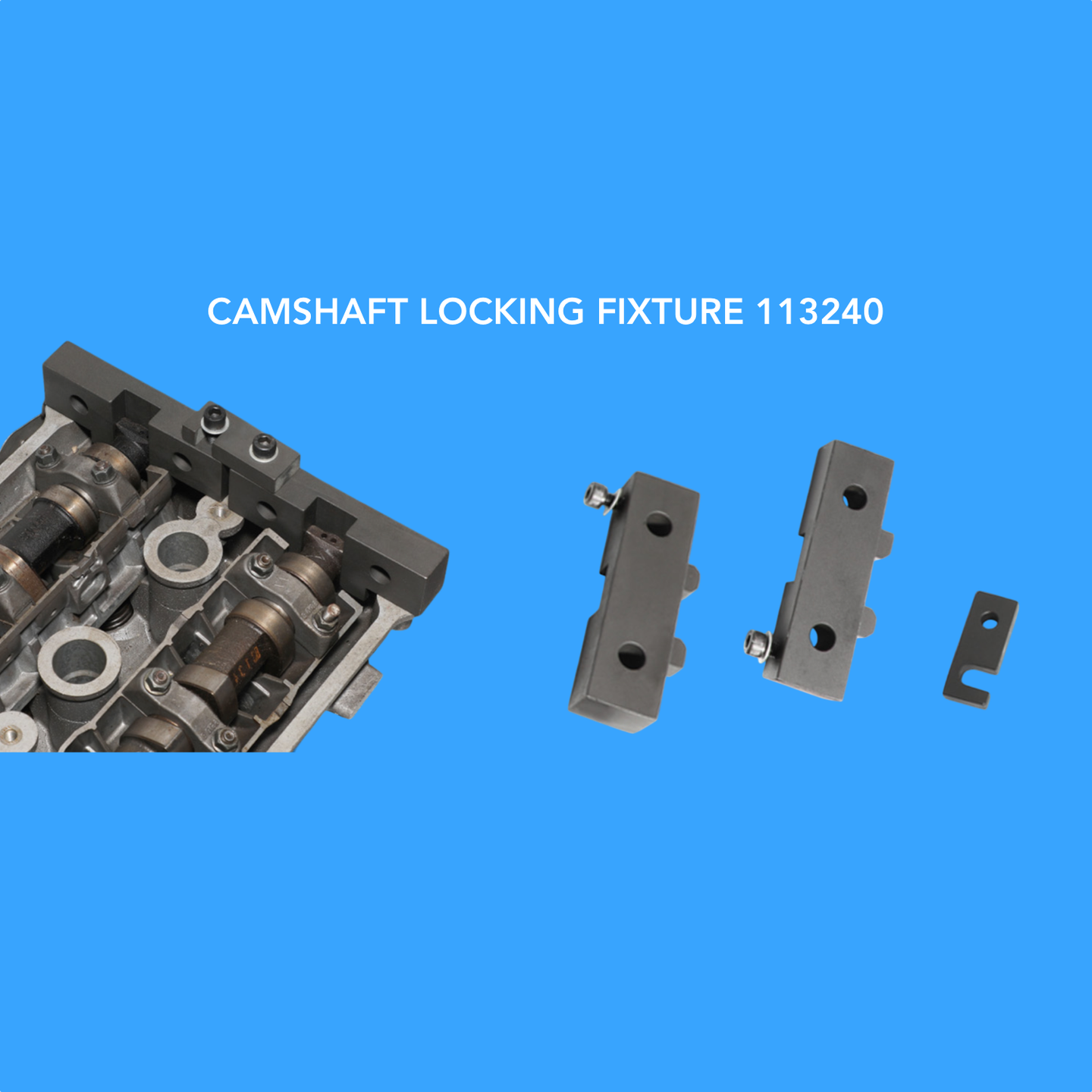

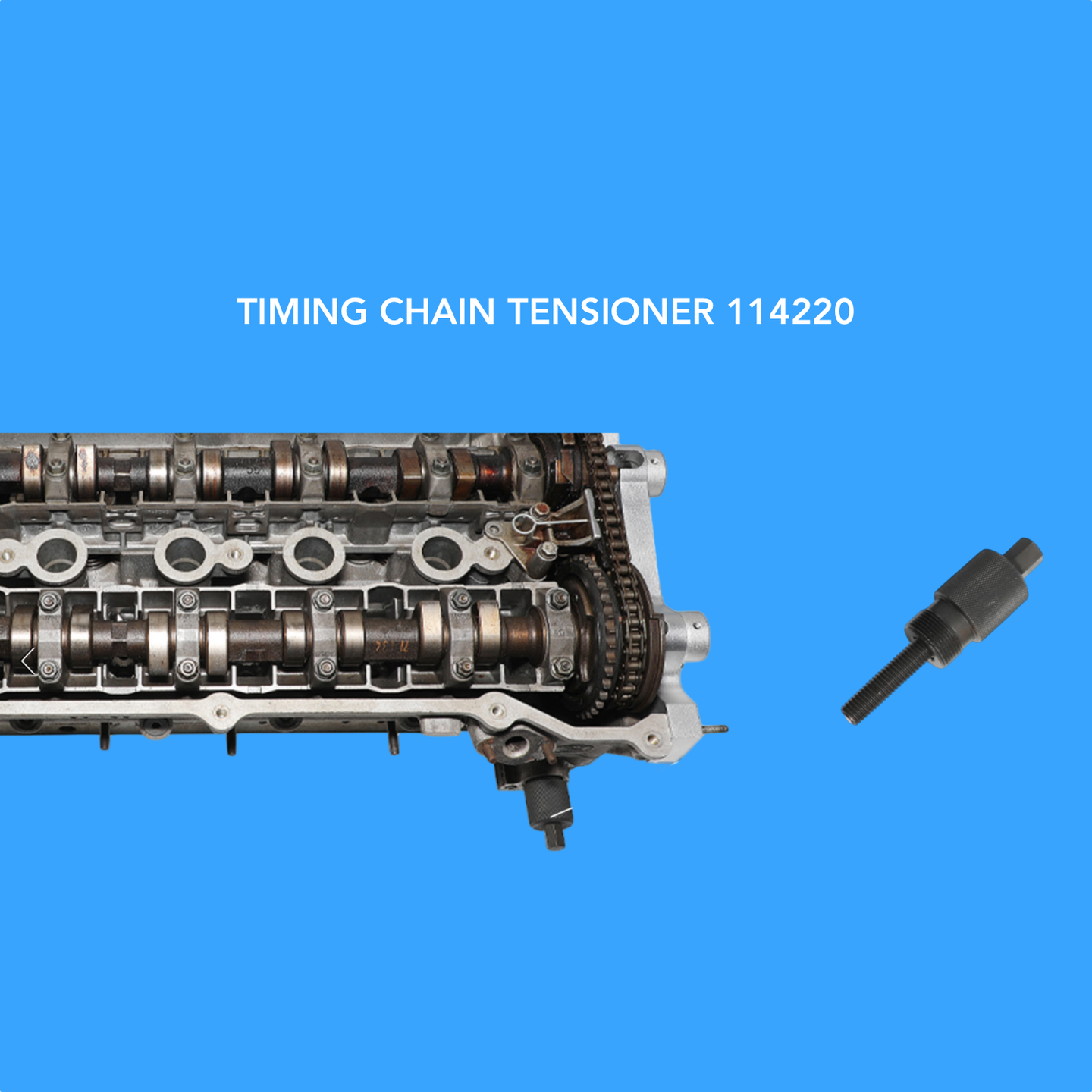

The camshaft locking fixture holds the camshafts in their proper timing position, while the Top Dead Center pin locks the engine at TDC. The alignment and sprocket jigs assist with correctly positioning the Dual VANOS timing components, and the rigid chain tensioner applies the necessary preload to the timing chain during the timing procedure.

A compressed air connection is also included for VANOS service procedures, along with the specialty VANOS turning wrench.

Engine Compatibility

Designed for BMW six-cylinder engines equipped with Dual VANOS, including:

• M52TUB25 — 2.5L
• M52TUB28 — 2.8L
• M54B22 — 2.2L
• M54B25 — 2.5L
• M54B30 — 3.0L
• M56B25 — 2.5L SULEV

BMW Fitment Guide

M52TUB25 — 2.5L

*M52TUB25 model names and availability vary by market. The M52TU tool application includes E46 323, E39 523i, and Z3 applications.

M52TUB28 — 2.8L

*European/international-market application. M52TUB28 tool fitment includes the E46 328, E39 528i, Z3 2.8, and E38 728i.

M54B22 — 2.2L

*Primarily European/international-market applications.

M54B25 — 2.5L

*Model availability varies by market.

M54B30 — 3.0L

These are the primary M54B30 applications covered by this timing tool set.

M56B25 — 2.5L SULEV

The kit is also compatible with the M56B25 SULEV engine found in select BMW E46 325 models. M56 engines use the same applicable Dual VANOS timing tooling covered by this set.

Important Fitment Note

BMW engine availability varies by production date and market, particularly for European-market models. Always verify your engine code before ordering.

For North American cars, the most common applications are the E46 323/325/328/330, E39 525/528/530, E53 X5 3.0i, E83 X3 2.5i/3.0i, Z3 2.5/2.8/3.0, and early E85 Z4 2.5i/3.0i.

The Right Tools for the Job

Proper engine timing isn't the place for guesswork. If you're rebuilding your Dual VANOS unit or performing major timing or cylinder head work, having the correct fixtures makes it easier to keep the crankshaft, camshafts, timing chain, and VANOS system properly positioned throughout the repair.

With eight specialty timing tools and a dedicated carrying case, this kit gives you the equipment needed to tackle M52TU, M54, and M56 Dual VANOS timing work correctly.
