BMW M52TU / M54 Dual VANOS High-Performance Bearing Rattle Repair Kit

Eliminate the infamous BMW Dual VANOS rattle with our High-Performance Dual VANOS Bearing Rattle Repair Kit, engineered specifically for BMW M52TU and M54 Dual VANOS units.

As BMW Dual VANOS units accumulate mileage, wear within the piston bearing assemblies can create excessive axial play. The result is the familiar metallic VANOS rattle coming from the front of the engine, often described as marbles or rocks rattling around inside the timing system.

Unlike the Single VANOS system, the M52TU and M54 use Dual VANOS, which independently adjusts both the intake and exhaust camshafts. That means there are two VANOS piston bearing assemblies to service.

Our kit replaces the worn factory bearing components with high-performance roller bearing assemblies designed to reduce unwanted movement, eliminate bearing-related VANOS rattle, and restore proper operation of both VANOS piston assemblies.

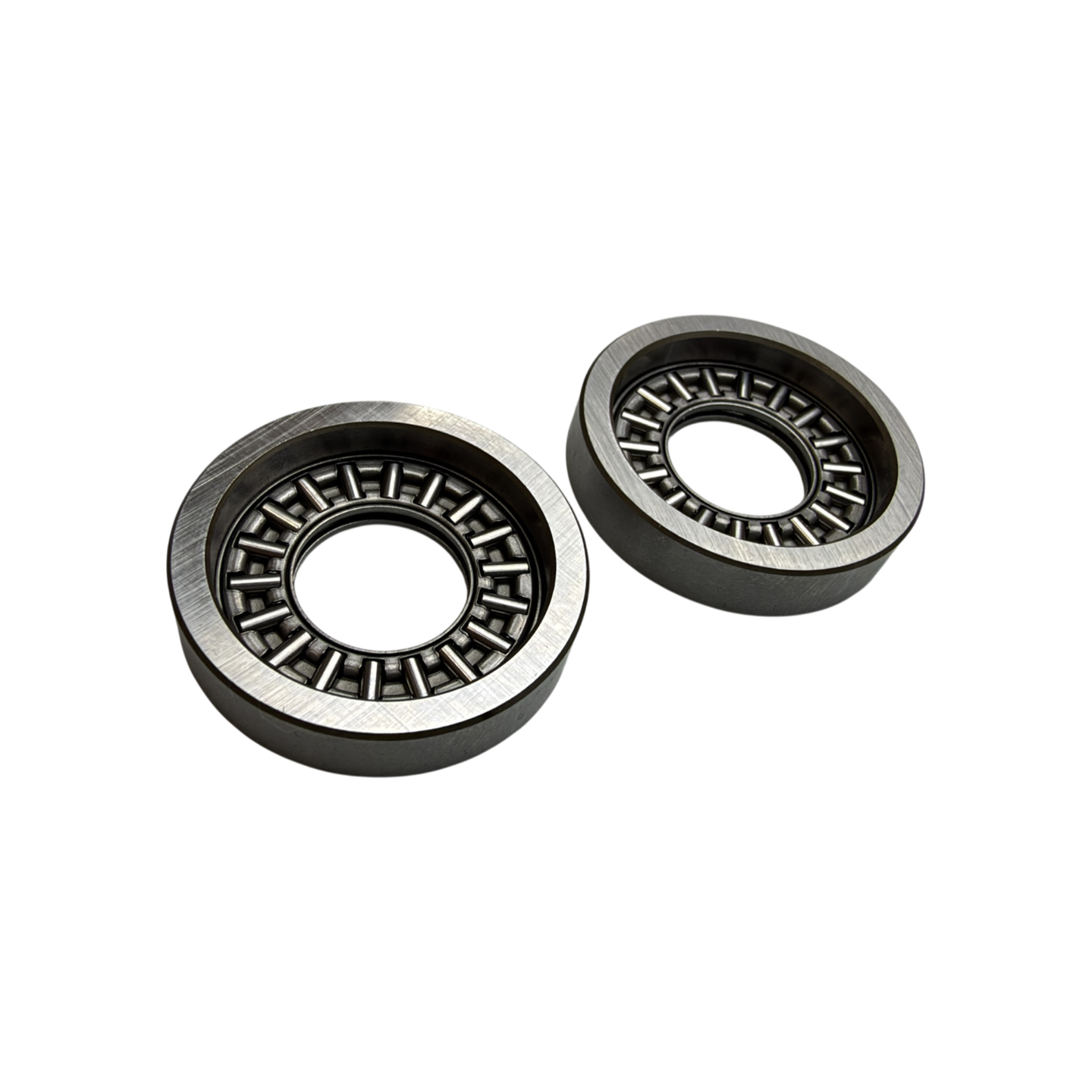

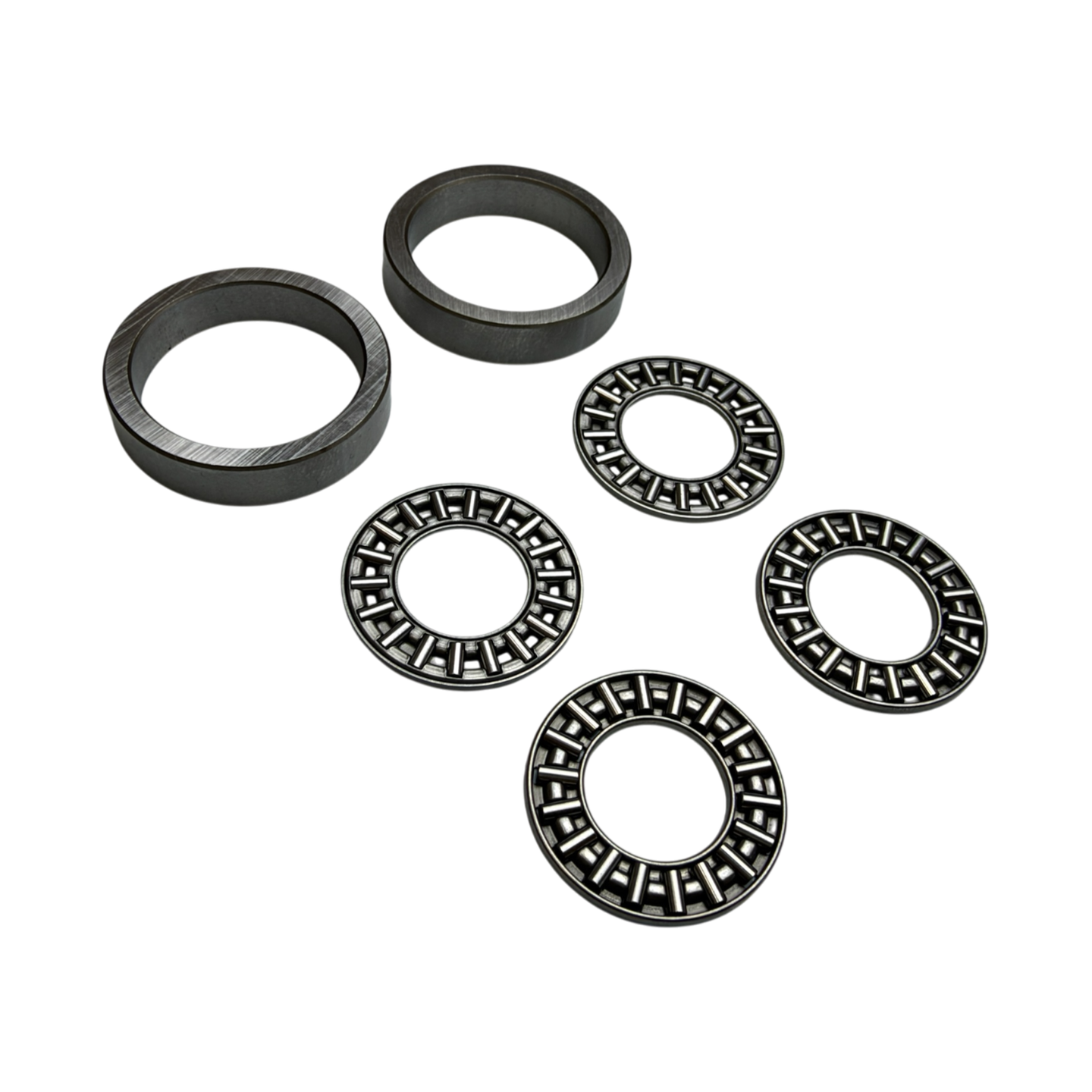

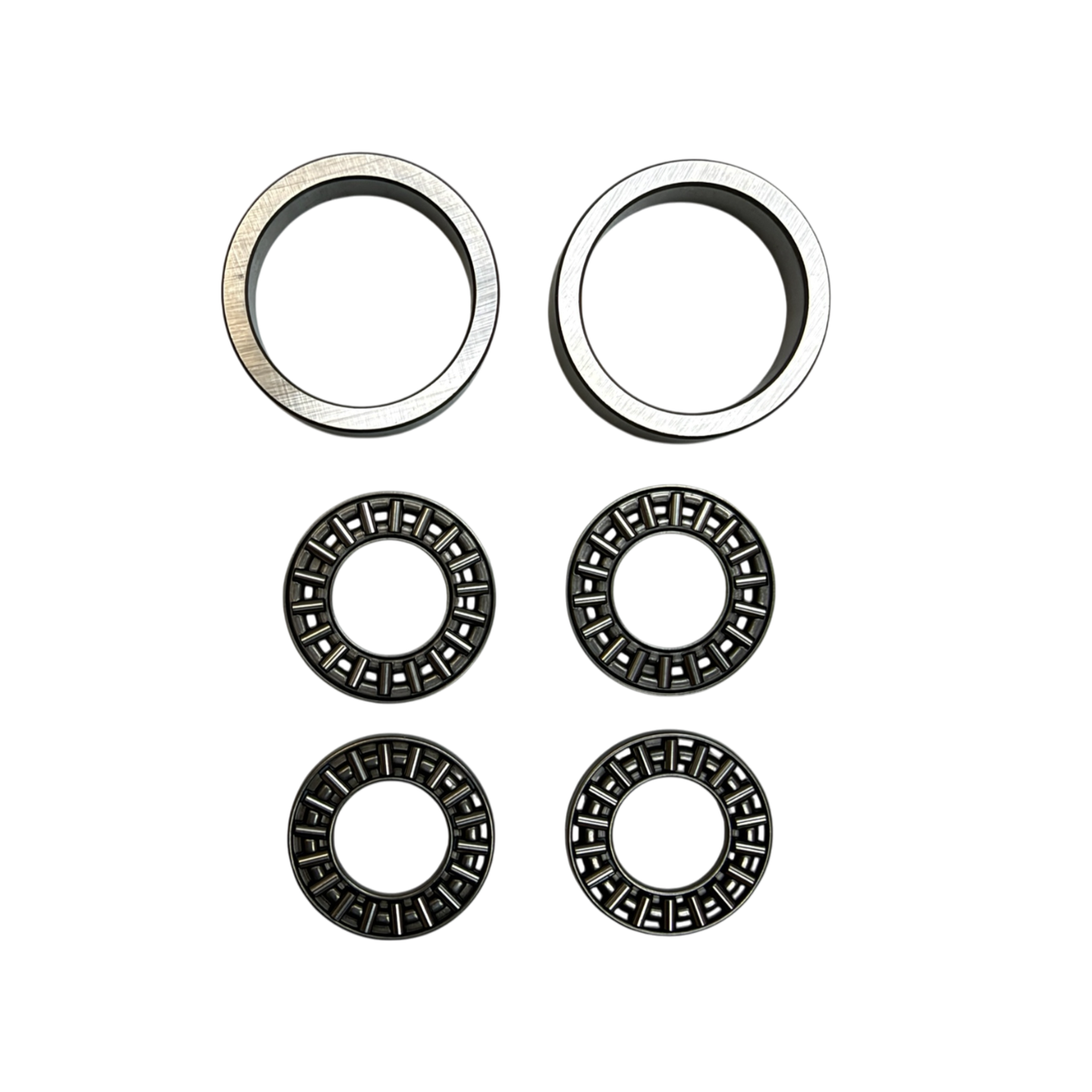

Kit Includes

• 2 VANOS Bearing Rings
• 4 High-Performance Roller Bearings

One complete bearing repair kit services both the intake and exhaust sides of the M52TU/M54 Dual VANOS unit.

Individually Fitment Checked

Bearing fit is extremely important when rebuilding a VANOS unit.

Every bearing kit is checked for proper fit using a brand-new VANOS unit before it leaves us. This provides a known factory-spec reference point for the bearing assemblies.

However, your VANOS unit may have accumulated decades of wear. Because the amount of wear can vary between individual units, minor adjustment of the bearing rings or races may be required to achieve the correct fit and preload in your specific VANOS assembly.

This is normal and allows the bearing assemblies to be precisely fitted to your VANOS rather than relying on a one-size-fits-all tolerance.

What Does Dual VANOS Rattle Sound Like?

A worn Dual VANOS bearing assembly typically creates a metallic rattling or buzzing noise from the front of the engine. Many owners describe it as sounding like a handful of marbles or small rocks being shaken around inside the VANOS unit.

The noise may become more noticeable within certain RPM ranges and can sometimes be mistaken for timing chain or other valvetrain noise.

Replacing the worn bearing components and properly setting bearing preload helps eliminate excessive movement within the VANOS piston assemblies.

Don't Be Fooled by Cheap VANOS Bearing Kits

Not all VANOS rebuild components are created equal.

There are cheaper bearing kits available online, but bearing quality, tolerances, and fitment matter. There's a reason some kits cost significantly less.

Our high-performance roller bearing components are specifically selected for BMW M52TU/M54 Dual VANOS applications, and every kit is checked in a brand-new VANOS unit for proper reference fitment before being sold.

When you're already taking apart your VANOS unit, saving a few dollars on one of the most important components inside it isn't worth doing the job twice.

Bearing Fitment & Adjustment

Important: Used VANOS units can have different amounts of wear. Some bearing assemblies may require minor adjustment during installation to achieve the proper preload and piston movement.

Always check both VANOS bearing assemblies individually during the rebuild.

400-grit sandpaper must be used for the following adjustment procedures.

To Tighten the Bearing

If axial play is present or there is insufficient preload, the applicable bearing ring can be carefully sanded to tighten the assembly.

1. Place a sheet of 400-grit sandpaper on a solid, completely flat surface.
2. Using medium pressure, sand one surface of the bearing ring back and forth approximately 6–8 inches, 30–40 times.
3. Rotate the ring 90 degrees and repeat the sanding procedure.
4. Flip the ring over and repeat the procedure on the opposite surface.
5. Rotate the ring another 90 degrees and repeat.

This procedure removes only a very small amount of material—approximately 0.004–0.006 mm from the total thickness of the ring.

Reassemble and check bearing fit and preload. Repeat only if additional adjustment is necessary.

To Loosen the Bearing

If excessive force is required to rotate the VANOS piston, the applicable bearing race can be carefully sanded to increase clearance.

1. Place a sheet of 400-grit sandpaper on a solid, completely flat surface.
2. Using medium pressure, sand one surface of the bearing race back and forth approximately 6–8 inches, 30–40 times.
3. Rotate the race 90 degrees and repeat the sanding procedure.
4. Flip the race over and repeat the procedure on the opposite surface.
5. Rotate the race another 90 degrees and repeat.

This procedure removes approximately 0.004–0.006 mm from the total thickness of the race.

Reassemble and check the piston for proper movement. Repeat only if additional adjustment is required.

Always remove material gradually. It is much easier to remove additional material than to correct a component that has been sanded too far.

Fitment Guide

This kit is designed specifically for BMW models equipped with M52TU and M54 Dual VANOS inline-six engines.

Engine Fitment

M52TU Dual VANOS

• M52TUB20
• M52TUB25
• M52TUB28

M54 Dual VANOS

• M54B22
• M54B25
• M54B30

Important Production-Date Note

BMW transitioned several models from the earlier M52 Single VANOS engine to the M52TU Dual VANOS engineduring the 1998–1999 production period.

Because model years can overlap, especially between different markets, we recommend verifying that your vehicle is equipped with an M52TU or M54 Dual VANOS engine before ordering.

This kit is not compatible with the earlier M50TU/M52/S50/S52 Single VANOS system or the S54 Dual VANOS system.

Fix the Dual VANOS Rattle at the Source

If your M52TU or M54 sounds like there's a box of marbles at the front of the engine, worn VANOS bearing assemblies may be the source.

Our High-Performance Dual VANOS Bearing Rattle Repair Kit gives you the two bearing rings and four roller bearings needed to service both sides of the VANOS unit. With the ability to precisely adjust each bearing assembly to your individual VANOS unit, you can address excessive play rather than simply living with the noise.

Whether you're repairing an existing VANOS rattle or completing a comprehensive M52TU/M54 VANOS rebuild, this is an ideal upgrade while the unit is already apart.
