BMW M52TU / M54 Dual VANOS Rebuild Kit — Stage 4

For the most complete M52TU/M54 VANOS service, our Stage 4 Dual VANOS Rebuild Kit combines the internal VANOS rebuild components from Stage 3 with the additional gaskets, grommets, and oil feed line needed to refresh the surrounding components while everything is already apart.

BMW's Dual VANOS system independently adjusts both the intake and exhaust camshaft timing, helping the M52TU and M54 deliver smooth torque, throttle response, and drivability throughout the RPM range. Unfortunately, the original VANOS seals deteriorate with age, mileage, and repeated heat cycles.

As the seals wear, the VANOS pistons can lose their ability to maintain proper oil pressure and effectively control camshaft timing. Common symptoms can include loss of low-RPM torque, hesitation, uneven power delivery, poor throttle response, VANOS-related fault codes, and reduced overall performance.

Dual VANOS units can also develop mechanical wear within the bearing assemblies, creating the infamous VANOS rattle. This metallic noise is often described as sounding like marbles or rocks rattling around at the front of the engine.

Our Stage 4 kit is designed for the owner who wants to tackle the VANOS rebuild and replace several common surrounding wear and sealing components at the same time.

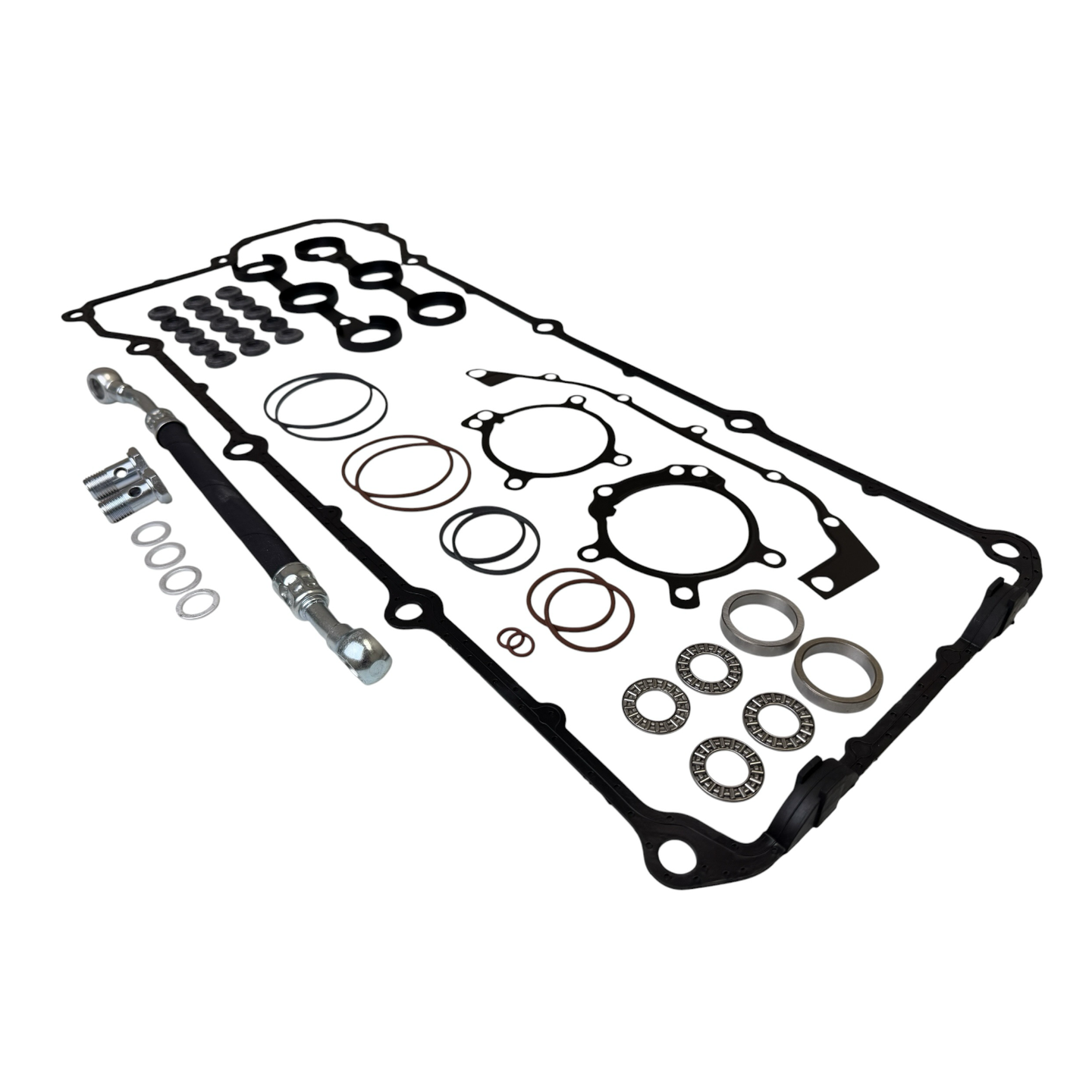

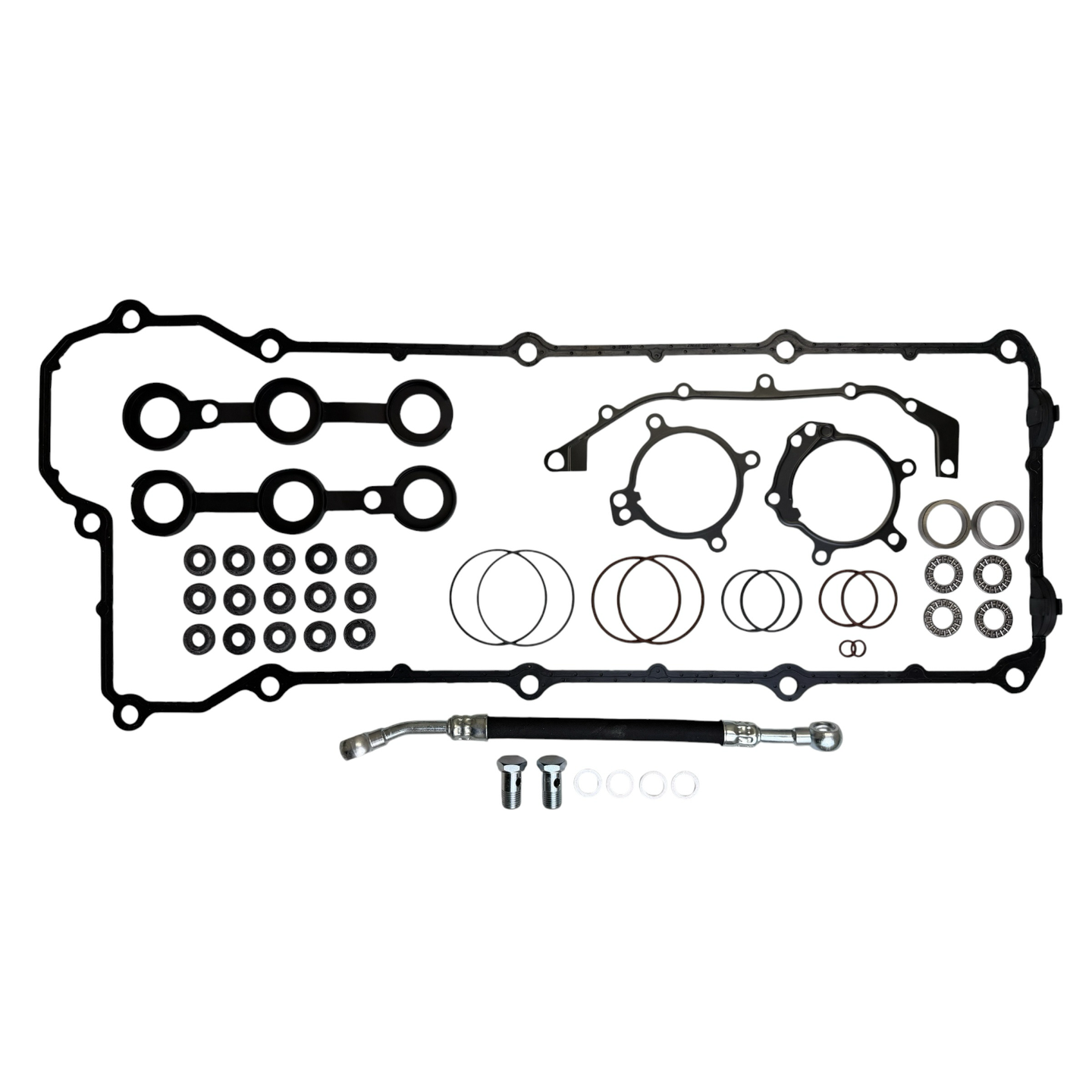

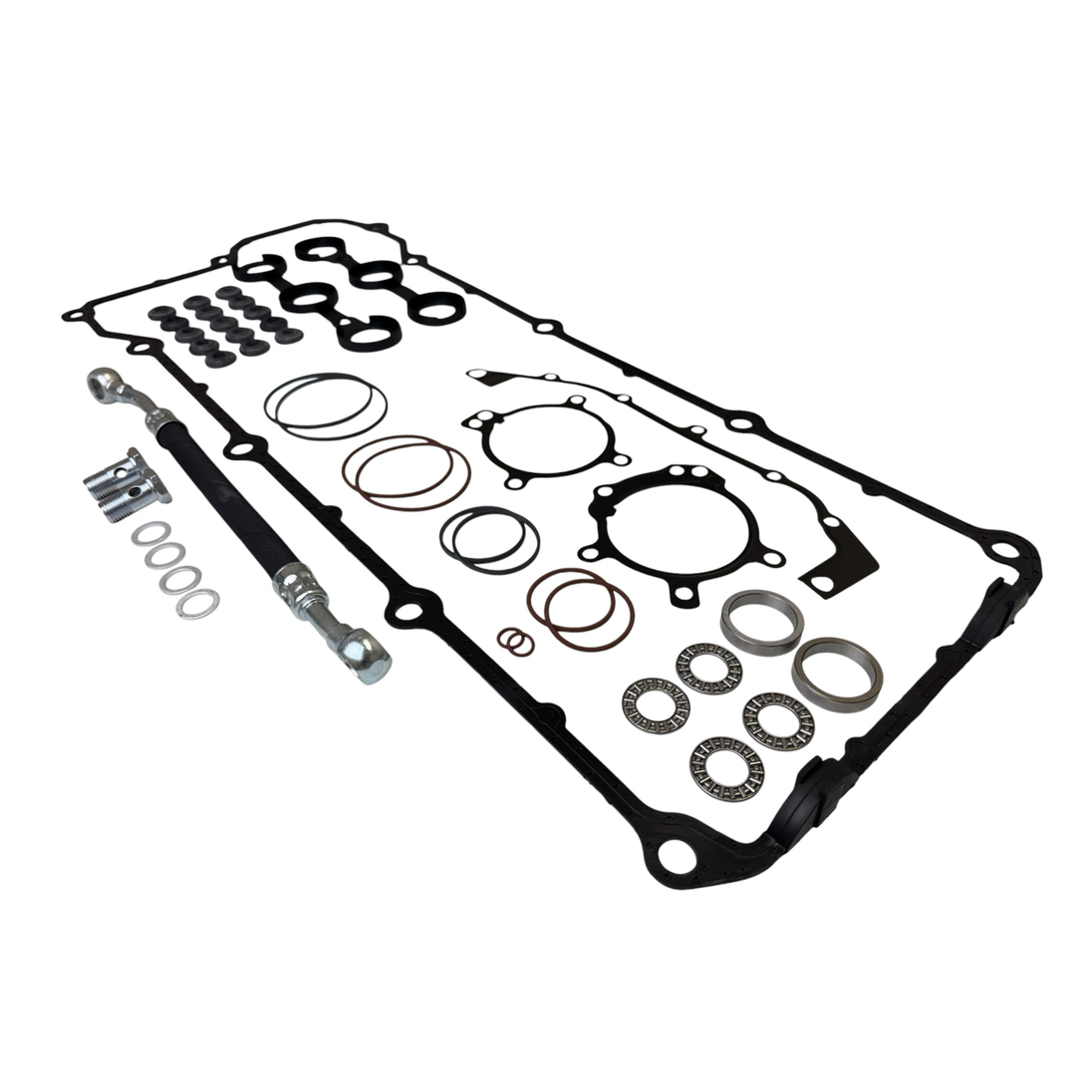

Stage 4 Kit Includes:

• 2 Large PTFE (Teflon) Piston Ring Seals
• 2 Small PTFE (Teflon) Piston Ring Seals
• 2 Large FKM (Viton) O-Ring Seals
• 2 Small FKM (Viton) O-Ring Seals
• 2 Small FKM (Viton) O-Rings for VANOS Blind Plugs
• 2 Copper VANOS Oil Line Sealing Washers

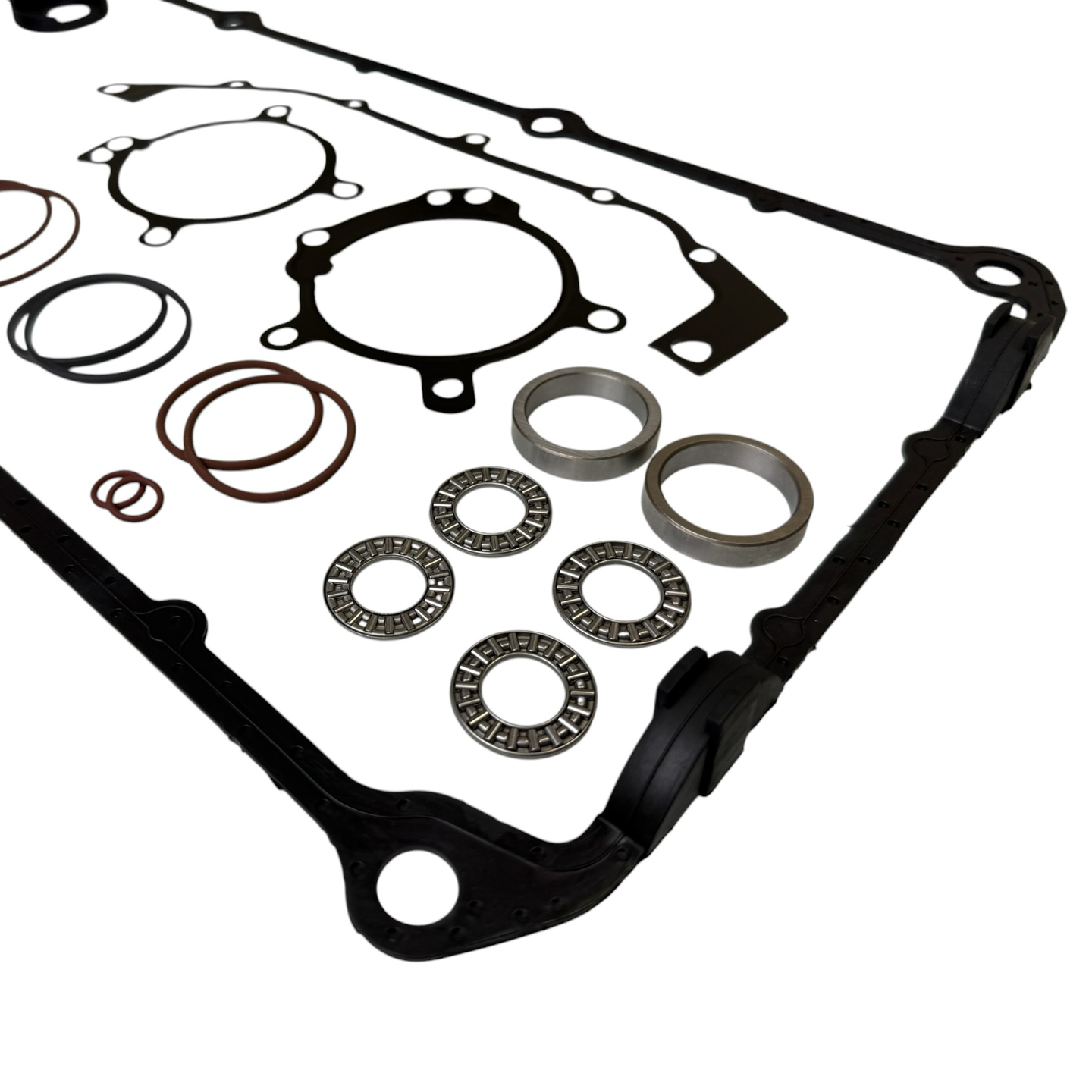

• 2 Anti-Rattle Bushing Sets
  • 2 Anti-Rattle Bushings
  • 4 Anti-Rattle Bearings
• 1 OEM VANOS Sealing Gasket
• 2 Piston Housing Seals

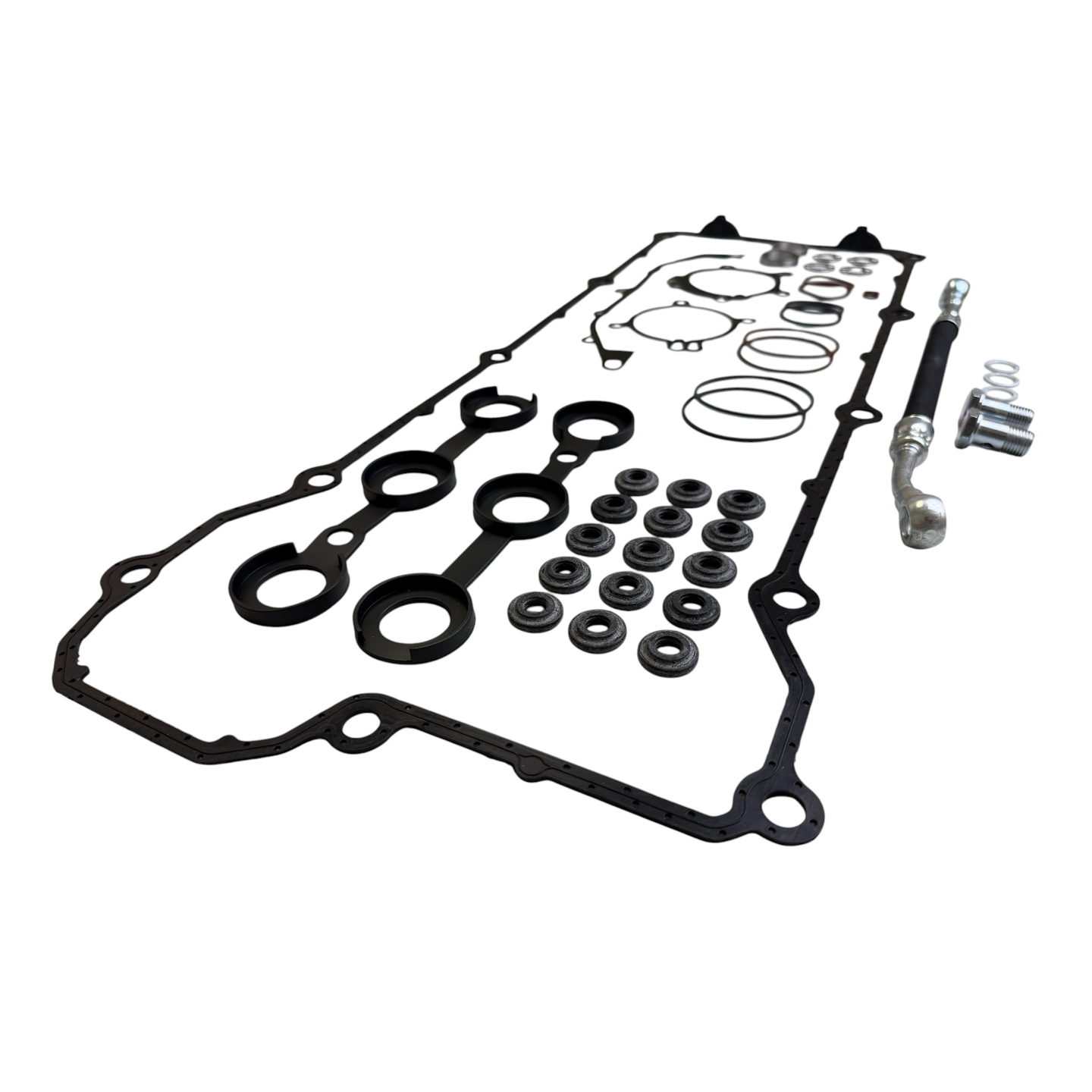

• Valve Cover Gasket
• Spark Plug Well Gaskets
• 15 Valve Cover Rubber Grommets
• VANOS Oil Feed Line
• Banjo Bolts

Why Choose Stage 4?

Stage 4 is our comprehensive M52TU/M54 Dual VANOS service kit.

Stage 1 replaces the primary internal VANOS piston seals. Stage 2 adds the anti-rattle components. Stage 3 adds the OEM VANOS sealing gasket and piston housing seals.

Stage 4 adds the surrounding components that make sense to replace while you're already in there: the valve cover gasket set, 15 rubber grommets, and VANOS oil feed line with banjo bolts.

Because the valve cover and VANOS unit are already being removed during the repair, this is an ideal opportunity to replace aging seals rather than reinstalling old, hardened components.

Don't Be Fooled by Cheap VANOS Kits

Not all VANOS rebuild kits are created equal.

There are cheaper kits available online, but the quality of the seals, bearings, and materials is not necessarily the same. There's a reason some kits sell for less than half the price.

We source quality PTFE and FKM sealing components along with quality anti-rattle components specifically for this application. Stage 4 also includes an OEM VANOS sealing gasket and the additional service components needed for a more comprehensive repair.

Do the job once. Do it right.

What About VANOS Rattle?

Stage 4 is designed to address both VANOS seal deterioration and bearing-related VANOS rattle.

M52TU and M54 Dual VANOS units can develop wear within their bearing assemblies over time. This can create the familiar metallic rattling noise from the front of the engine.

The included two anti-rattle bushing sets provide the bushings and bearings needed to service both VANOS bearing assemblies while the unit is apart.

More Than Just a VANOS Rebuild

Stage 4 goes beyond the VANOS unit itself.

The valve cover gasket and spark plug well gaskets replace common leak points that can become hard and brittle with age. The 15 rubber grommets refresh the sealing points at the valve cover fasteners.

We've also included a VANOS oil feed line with banjo bolts. This line supplies pressurized engine oil to the VANOS system and is another component that can develop leaks as these engines age.

Rather than removing the valve cover and VANOS unit only to reinstall decades-old surrounding components, Stage 4 allows you to refresh the entire area at once.

Fitment Guide

This kit is designed for BMW models equipped with M52TU and M54 Dual VANOS inline-six engines. Engine availability and production dates can vary by market.

BMW model years, production dates, and engine configurations can also vary by market. Verify that your vehicle is equipped with an M52TU or M54 engine before ordering.

This kit is not intended for the earlier M50TU/M52 Single VANOS system or the later N52/N54-series VANOS systems.

Stage 4: The Comprehensive Dual VANOS Service Kit

Choose Stage 4 when you want to tackle the VANOS rebuild and the common surrounding maintenance items in one job.

With the complete PTFE and FKM seal package, dual anti-rattle bushing sets, OEM VANOS sealing gasket, piston housing seals, valve cover gasket set, 15 rubber grommets, and VANOS oil feed line with banjo bolts, Stage 4 gives you the most comprehensive package in our M52TU/M54 Dual VANOS lineup.

Instead of taking everything apart only to reinstall old seals and aging components, Stage 4 lets you refresh the entire area while you're already in there.

Rebuild it once. Rebuild it right.
