Race German Upgraded PTFE VANOS Oil Supply Line

The factory BMW VANOS oil supply line is responsible for delivering pressurized engine oil to the VANOS system, making it a critical component for proper variable camshaft timing operation. With age, the original rubber hose can deteriorate, harden, leak, or become damaged around the crimped fittings. The Race German Upgraded VANOS Oil Supply Line replaces the aging factory rubber line with a motorsport-grade PTFE hose assembly designed for exceptional durability, temperature resistance, and long-term reliability.

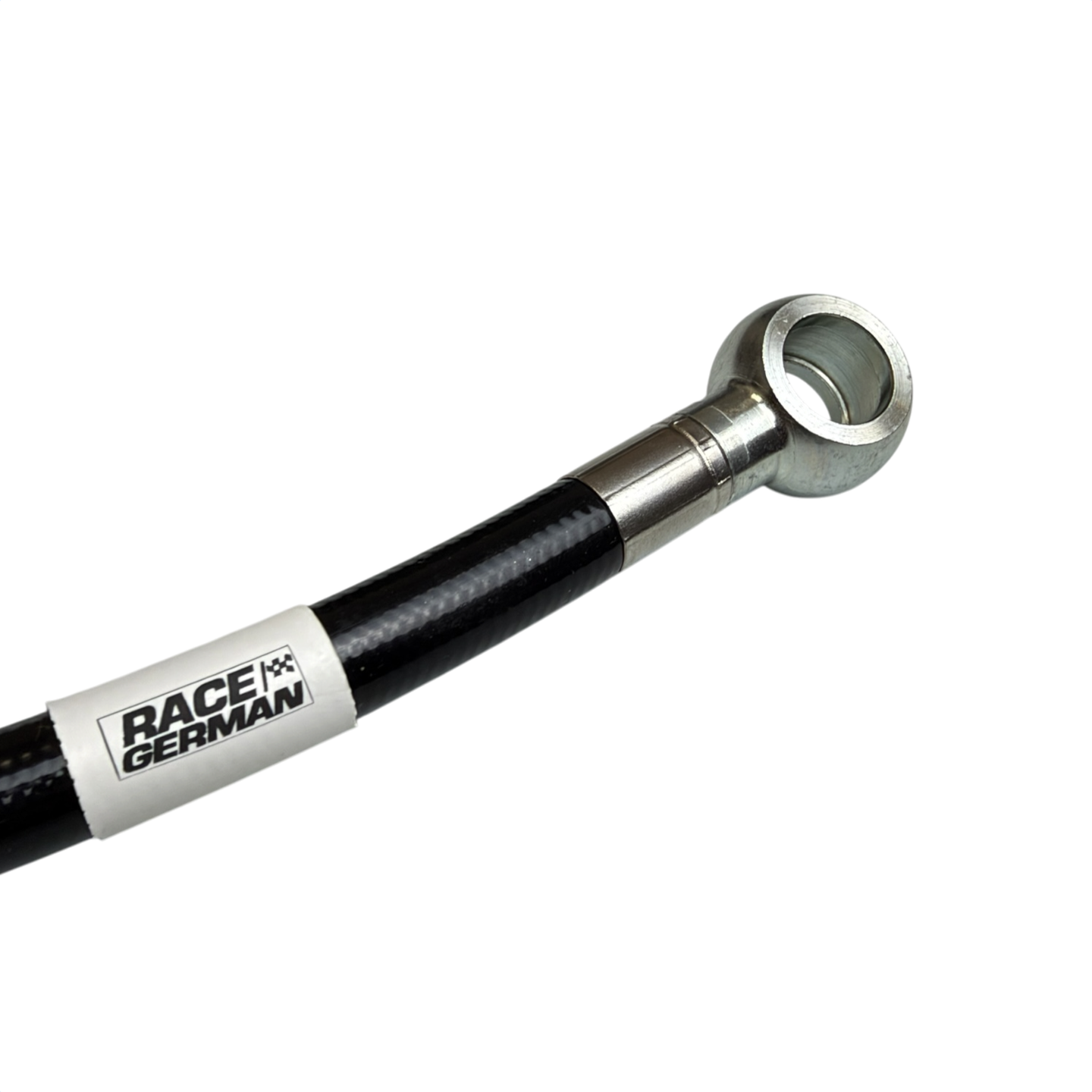

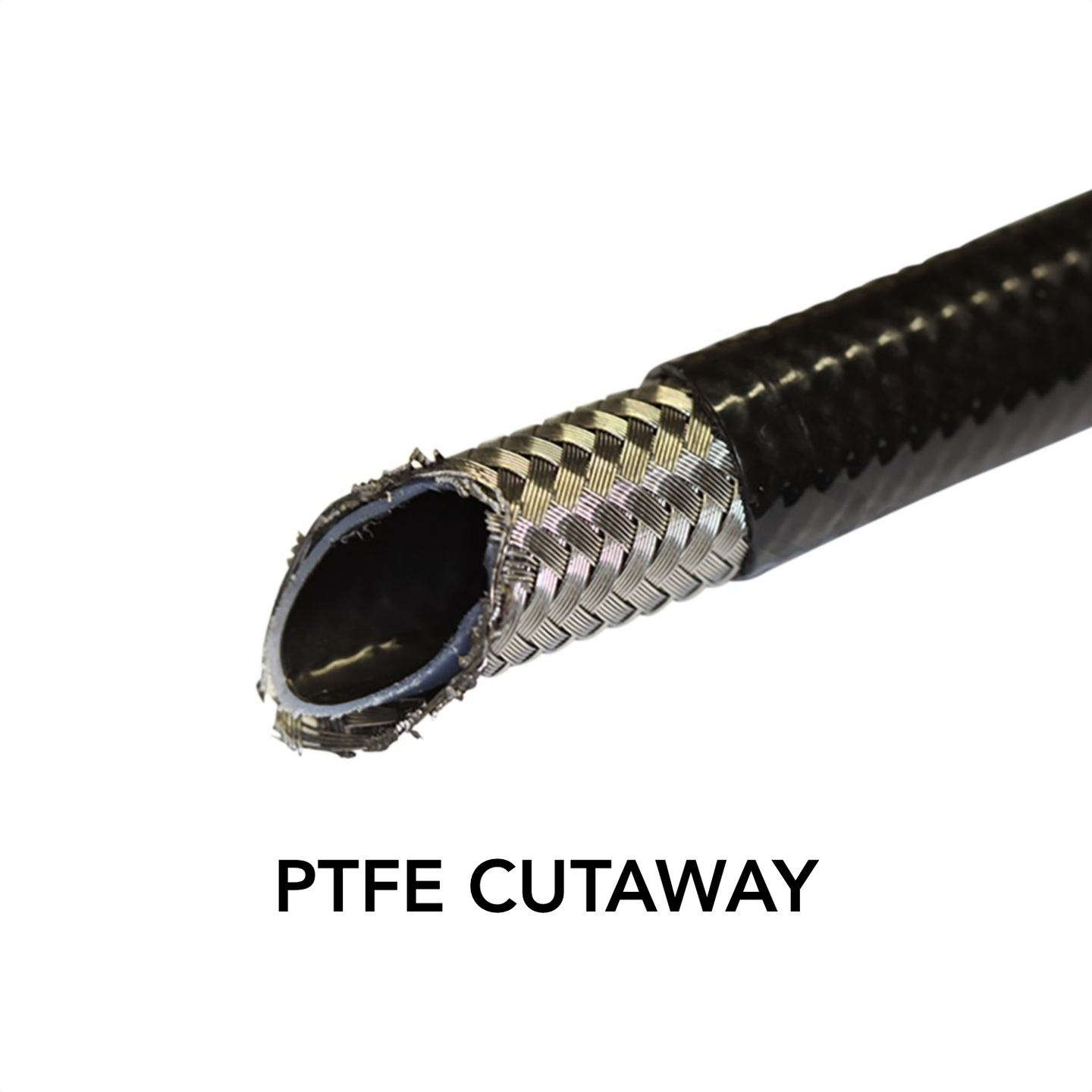

Rather than using conventional rubber hose, our upgraded line is manufactured from high-quality Aeroquip smooth-bore PTFE racing hose with a stainless-steel braided exterior. PTFE hose offers excellent resistance to heat, oil, pressure, and environmental damage while providing significantly less volumetric expansion than traditional rubber hose.

With an operating temperature range of -100°F to +450°F (-73°C to 232°C), this hose is more than capable of handling the demanding environment of a BMW engine bay.

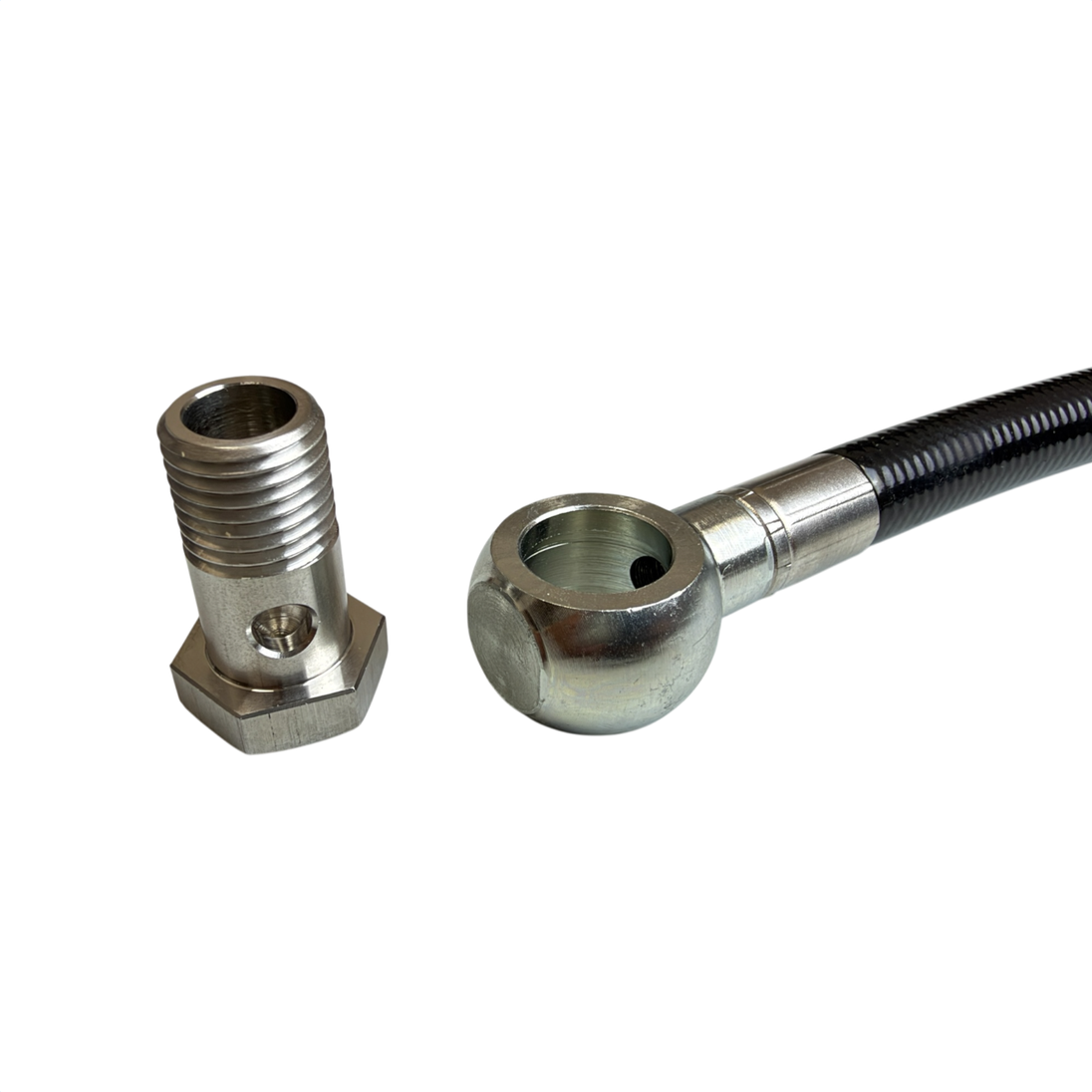

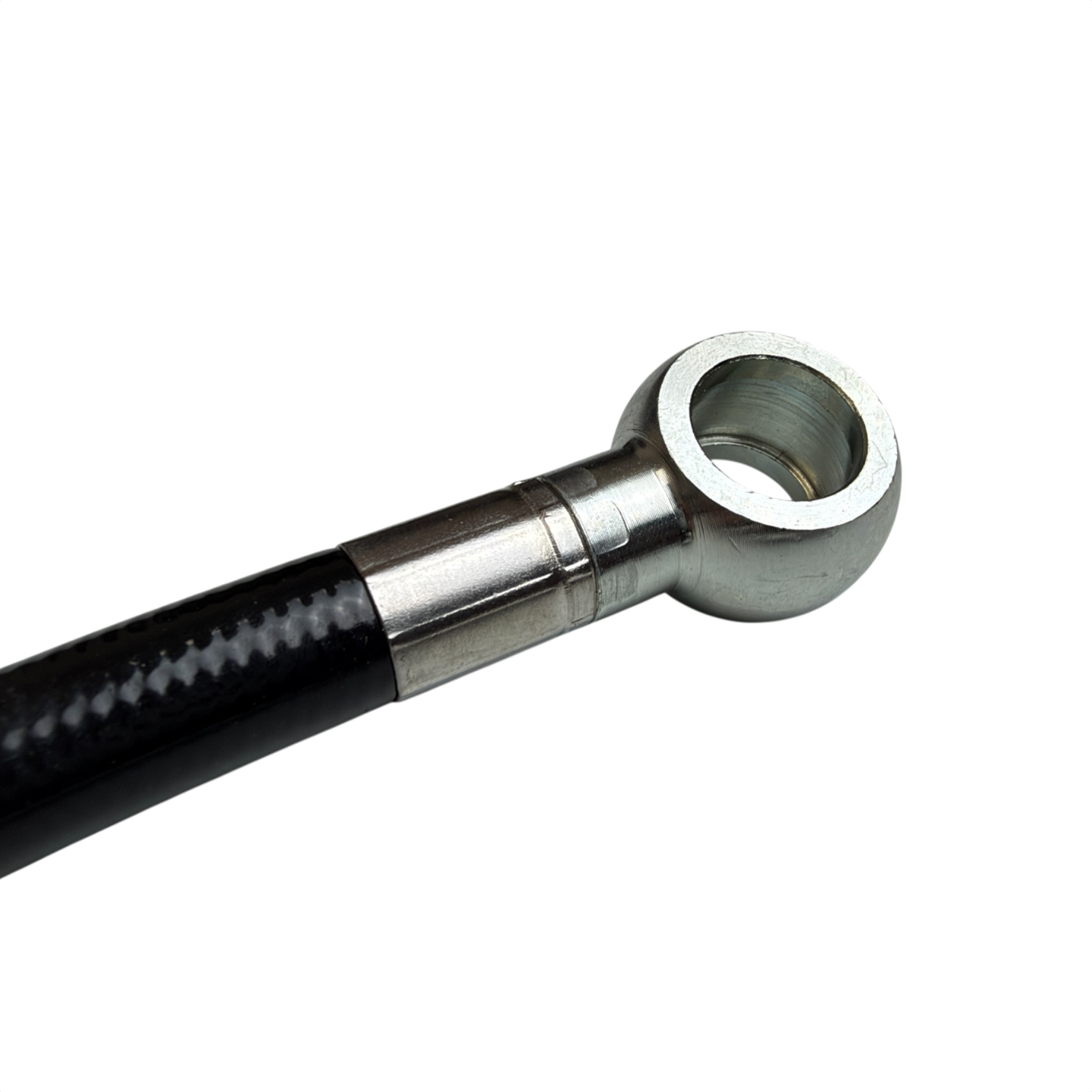

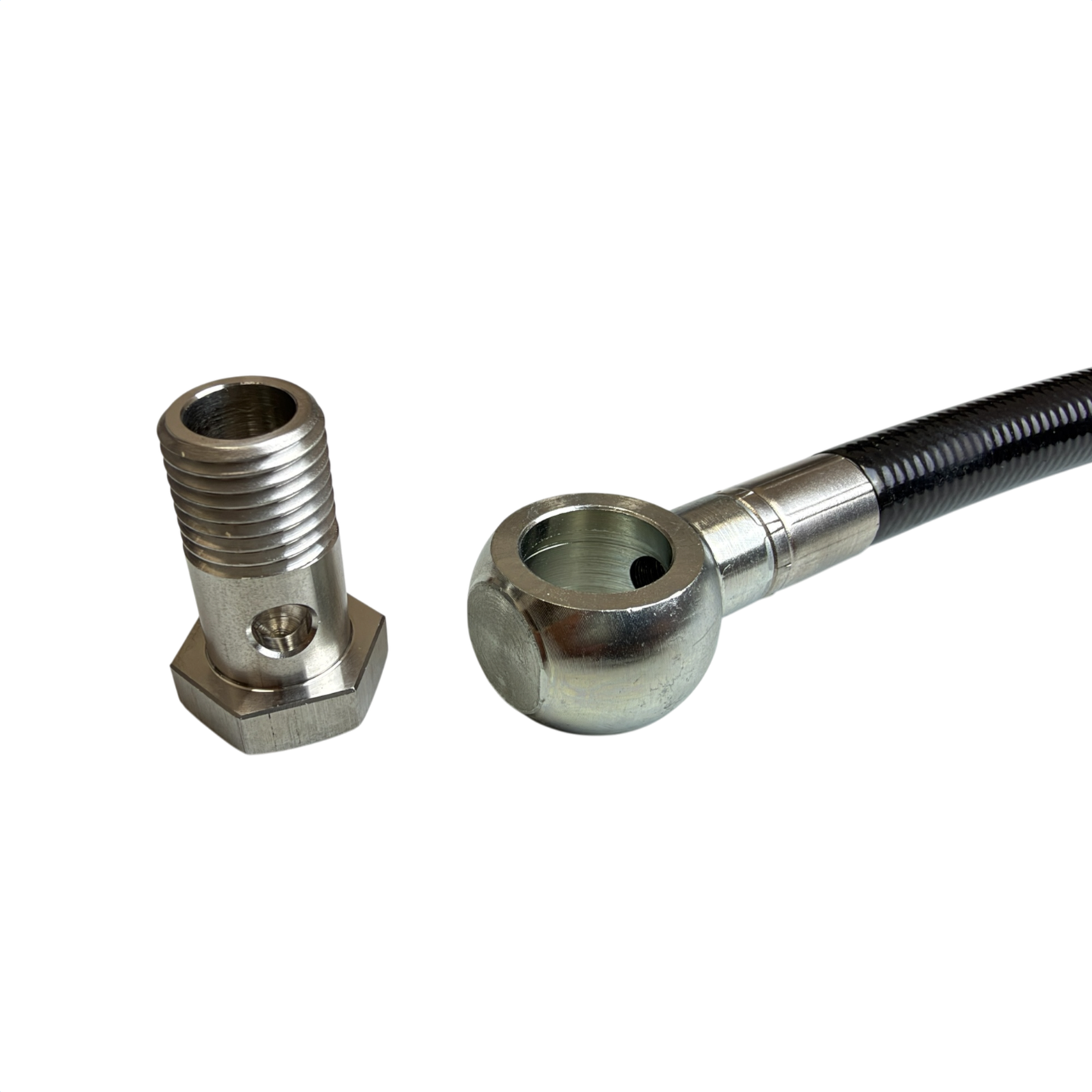

The hose is terminated with premium MOCAL USA banjo fittings, manufactured from high-quality steel with a protective plated finish. To complete the assembly, each kit includes two custom-machined, three-oval-hole banjo bolts manufactured from aerospace-grade 304 stainless steel. The multi-port design provides excellent oil flow to the VANOS system while the stainless construction offers exceptional strength and corrosion resistance.

Applicable crush washers are also included, giving you the hardware needed for installation.

This line replaces BMW part numbers 11361703464 and 11361705532 and is compatible with BMW M50TU, M52, S50, S52, M52TU, and M54 engines.

Why Upgrade?

Conventional rubber hoses with textile reinforcement can expand under pressure and deteriorate over time. Smooth-bore PTFE hose with a stainless-steel braided exterior has long been used in high-performance brake, hydraulic, and motorsport applications because of its combination of low weight, high strength, excellent temperature capability, minimal expansion, and resistance to abrasion and road-hazard damage.

We built this line without cutting corners. From the Aeroquip PTFE racing hose and MOCAL USA fittings to the custom 304 stainless-steel banjo bolts, every component was selected to create what we believe is the highest-quality upgraded VANOS oil supply line on the market.

Best of all, the Race German Upgraded VANOS Oil Supply Line is backed by a 100% Lifetime Guarantee against component failure.

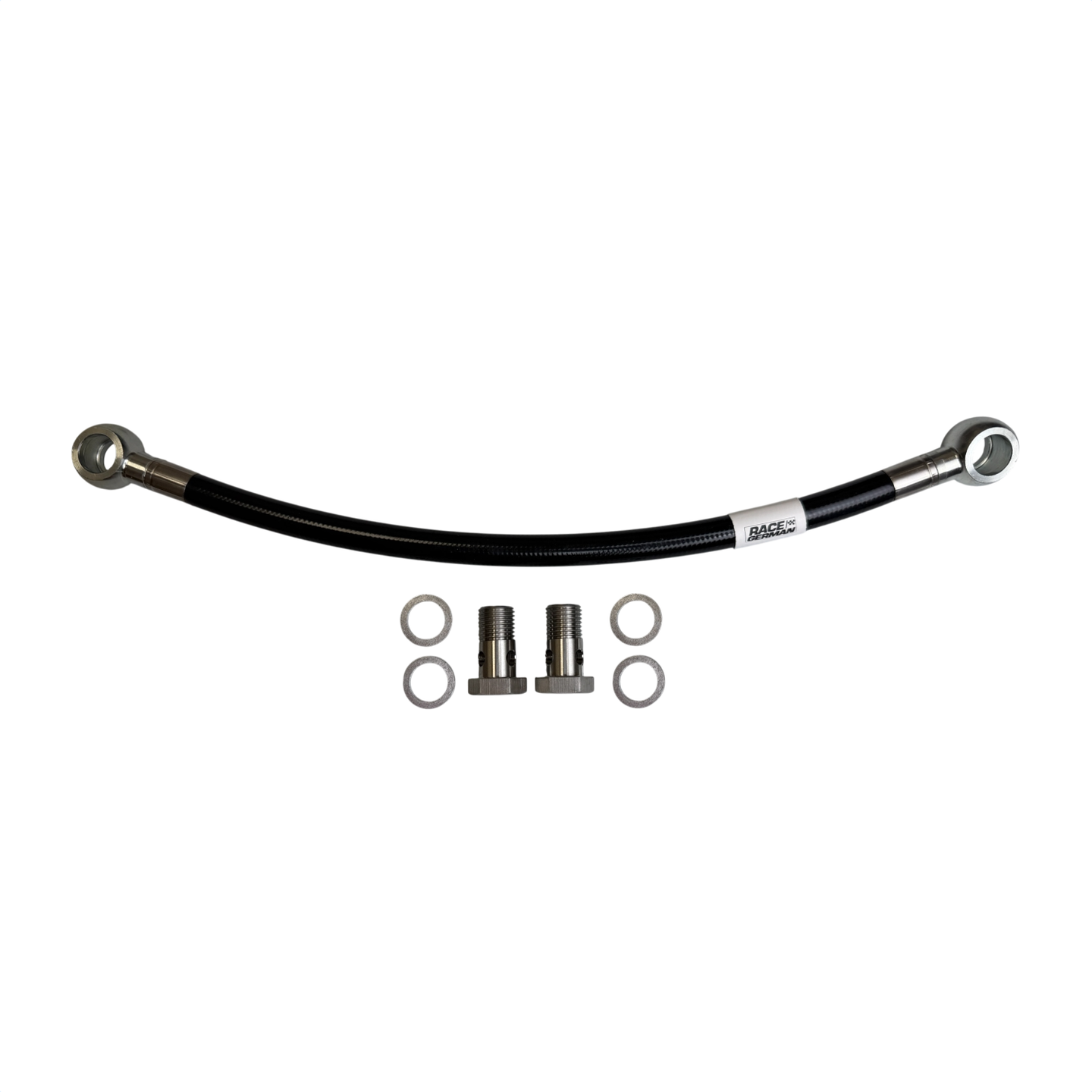

Kit Includes

• 1 Race German Aeroquip PTFE stainless-braided VANOS oil supply line
• 2 MOCAL USA plated-steel banjo hose ends

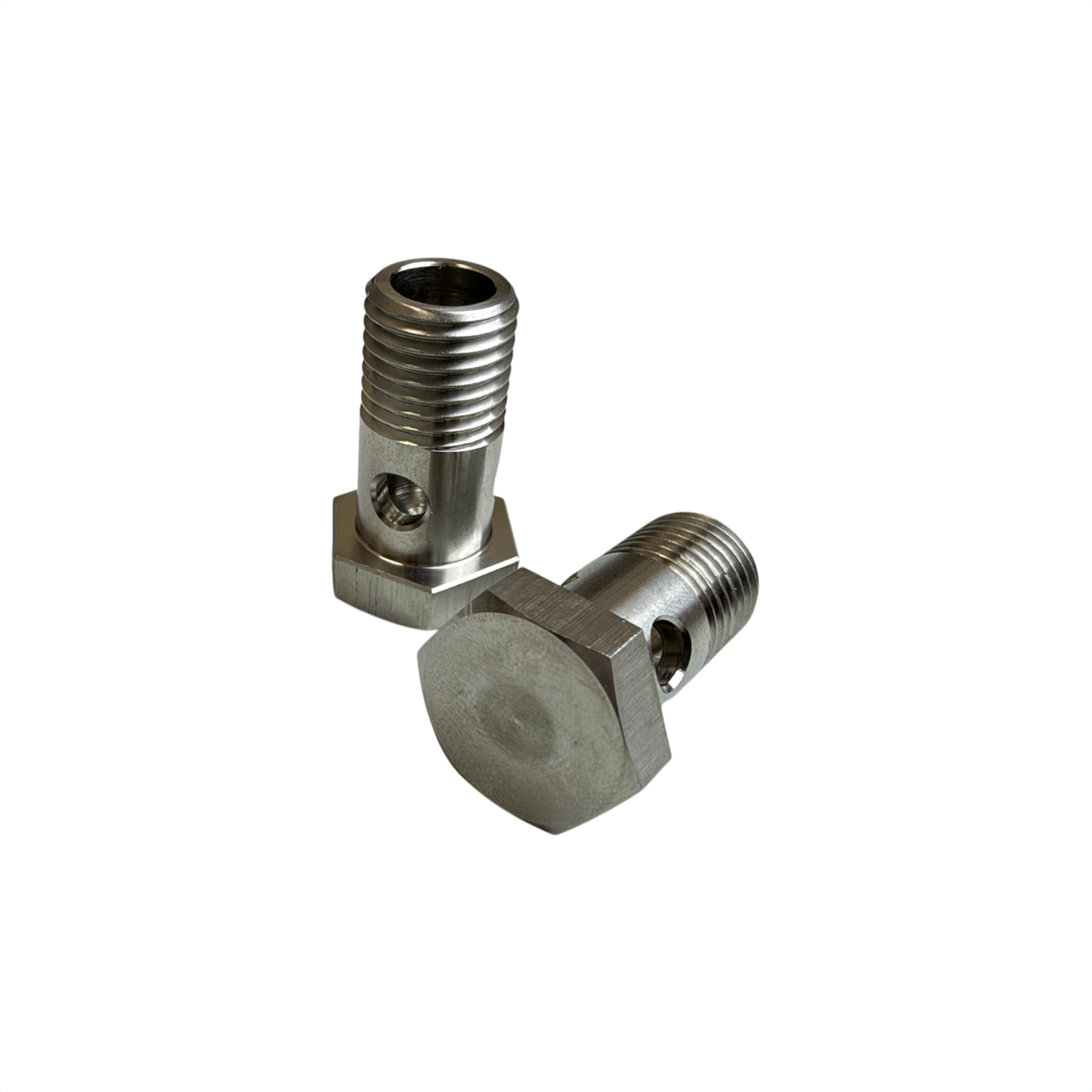

• 2 Custom three-oval-hole banjo bolts machined from aerospace-grade 304 stainless steel
• Applicable crush washers

BMW Engine Fitment

M50TU / S50 US

• E34 525i — 1993–1995
• E36 325i / 325is / 325ic — 1993–1995
• E36 M3 — 1995 (S50 US)

M52 / S52 US

• E36 323i / 323is / 323ic
• E36 328i / 328is / 328ic
• E36 M3 — 1996–1999 (S52 US)
• E39 528i — early production
• Z3 2.8 — M52
• Z3 M Roadster / M Coupe — S52
• E38 728i / 728iL — M52, non-US markets

M52TU

• E46 323i / 323Ci
• E46 328i / 328Ci
• E39 528i — later production
• Z3 2.3
• Z3 2.8 — M52TU
• E38 728i / 728iL — M52TU, non-US markets

M54

• E46 320i / 320Ci
• E46 325i / 325Ci / 325xi
• E46 330i / 330Ci / 330xi
• E39 520i / 525i / 530i
• E60/E61 520i / 525i / 530i — M54-equipped models
• E53 X5 3.0i
• E83 X3 2.5i / 3.0i
• Z3 2.5i / 3.0i
• E85 Z4 2.5i / 3.0i

Engine Fitment: M50TU, M52, S50 US, S52 US, M52TU, M54

Replaces BMW Part Numbers:
11361703464
11361705532

BMW model and engine availability varies by model year and market. Please verify your engine and original BMW part number before ordering.

Race German Lifetime Guarantee

We designed this VANOS oil line as a long-term upgrade rather than simply another replacement part. That's why every Race German Upgraded VANOS Oil Supply Line is backed by our 100% Lifetime Guarantee against component failure. If a component of the line fails under normal use, we've got you covered.
